HNCSB Ultrasonic Parts Washer Ultrasonic Cleaner Machine
Huanan Ultrasonic Equipment CO., Limited Guangzhou was established in 1993. We have more than 28 years industrial ultrasonic equipment manufacturing expeirence. The company specializes in te production of ultrasonic cleaning eqiupment and plastic , metal welding machinery . with general application to electronics , electrical appliances , machinery , metallurgy , textiles , chemicals , toys , clothing , medicine , pharmaceuticals , clocks / watches , jewellery , spectacles , stationery , cars , electroplating , packing and other diverse industrial processes . The products are sold in 31 states and cities of China , as well as in Hong Kong , Macao , Taiwan and overseas .
The usage of ultrasonic cleaning and emulsification is a state of the art method. The principle is based on the cavitation effect being generated in liquid through 25-80KHZ ultrasonic vibration frequency per second.
The high frequency electrical energy is converted into high frequency mechanical energy by the transducers . The transducer vibrate longitudinally and transfer this mothion as a pressure wave to the solvent , causing the lilquid to cavitate the rapid formation and collapse of many minute bubbles in the cleaning liquid. These bubbles create a mechanical scrubbing action, thoroughly removing soluble and insoluble soils.
Application as below:
Aerospace
Clean critical avitation parts from sensitive
Auto Motive
Clean fuel pumps and injectors,camshafts,gears,and bearings,postons,starters and throttle assemblies.
Industrial
Clean carbide inserts and tools for coating,multi tooth and mills or bicycle parts prior to reassembly,variety of machine parts for rebuilding and manufacturing.
Medical
Clean dental and surgical instruments . The cavitations process create a force that remove all contaminants without damaging the tools.
OEM available
| Model |
HN-1200S |
| Ultrasonic power |
1200W |
| Ultrasonic requency |
25/40 KHz |
| Heating Power |
1800W |
| Transducer quantity |
24 |
| Tank dimensions(mm) |
900x450x450
|
| Tank material |
316L |
| Basket |
Have |
| Lid |
Have |
| 304 Drain valve |
Have |
| Shell material |
304 |
| Power |
220V |
| Timer |
Can set the cleaning time |
| Thermostat |
Can set the heating temperature |
OEM available:
We also can custom built the machine base on customer's requirements . Such as the custom built machine with these items : Filtration,weir tank , sparge bar , insulation tank and lid . Digital touch with automatic ultrasonic , agitation and filtration , heating,auxiliary timer etc .
|
|

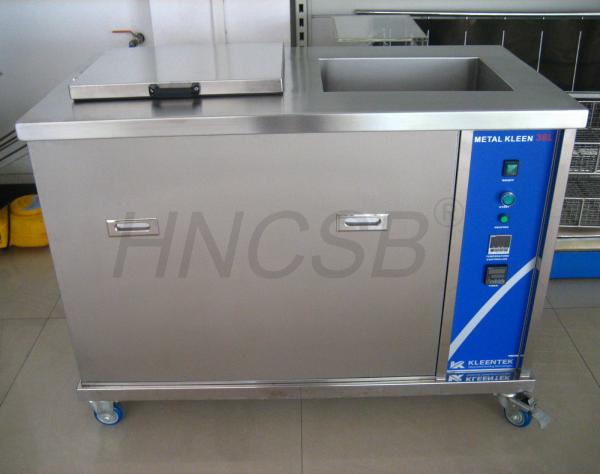

HNCSB 36L Ultrasonic Wash Tank Ultrasonic Cleaner Machine OEM Images
|
